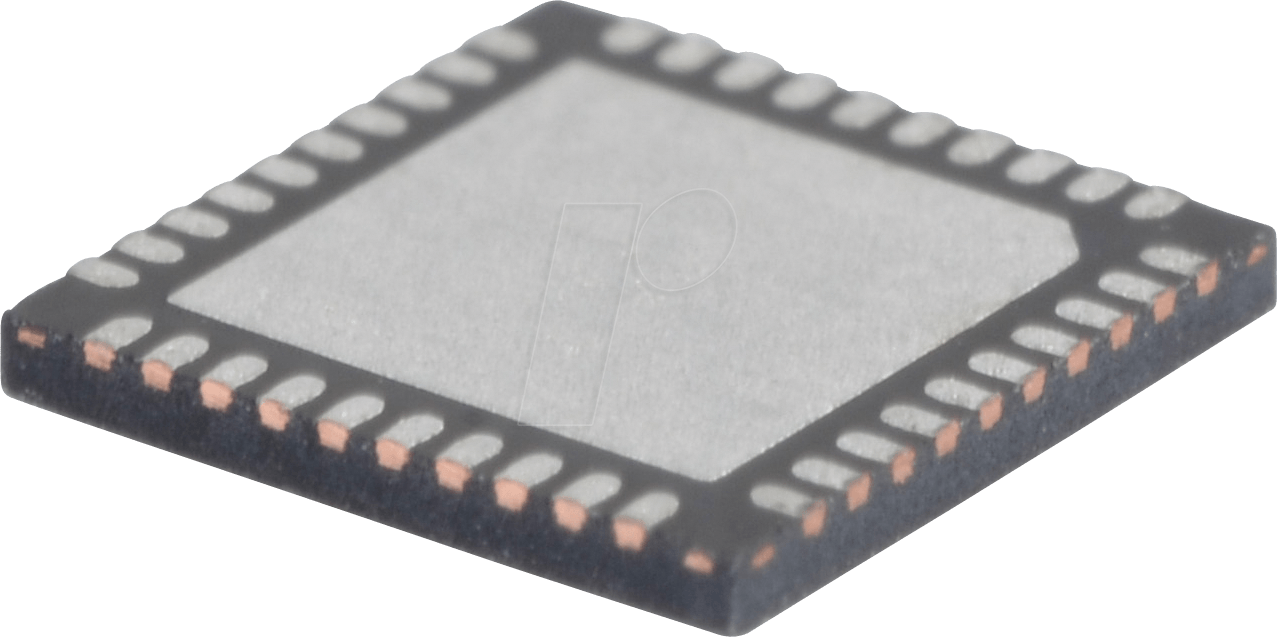

MCP 8024-H/MP - Motortreiber, für DC-Motoren, QFN-40

The MCP8024 is a 3-Phase Brushless DC (BLDC) Gate Driver with power module. The MCP8024 device integrates three half-bridge drivers to drive external NMOS/NMOS transistor pairs configured to drive a 3-phase BLDC motor, a comparator, a voltage regulator to provide bias to a companion microcontroller, power monitoring comparators, an overtemperature sensor, two level translators and three operational amplifiers for motor current monitoring.• Three Half-bridge Drivers Configured to Drive External High-Side NMOS and Low-Side NMOS MOSFETs• Independent input control for high-side NMOS and low-side NMOS MOSFETs• Peak output current: 0.5A @ 12V• Shoot-through protection• Overcurrent and short circuit protection • Adjustable Output Buck Regulator (750 mW)• Fixed Output Linear Regulators: 5V @ 20 mA12V @ 20 mA• Internal Bandgap Reference• Three Operational Amplifiers for Motor Phase Current Monitoring and Position Detection• Overcurrent Comparator• Two Level Translators• Input Voltage Range: 6 - 40V • Operational Voltage Range: 6 - 28V• Undervoltage Lockout (UVLO): 6V• Overvoltage Lockout (OVLO): 28V• Transient (100 ms) Voltage Tolerance: 48V• Extended Temperature Range: TA -40 to +150°C• Thermal Shutdown
