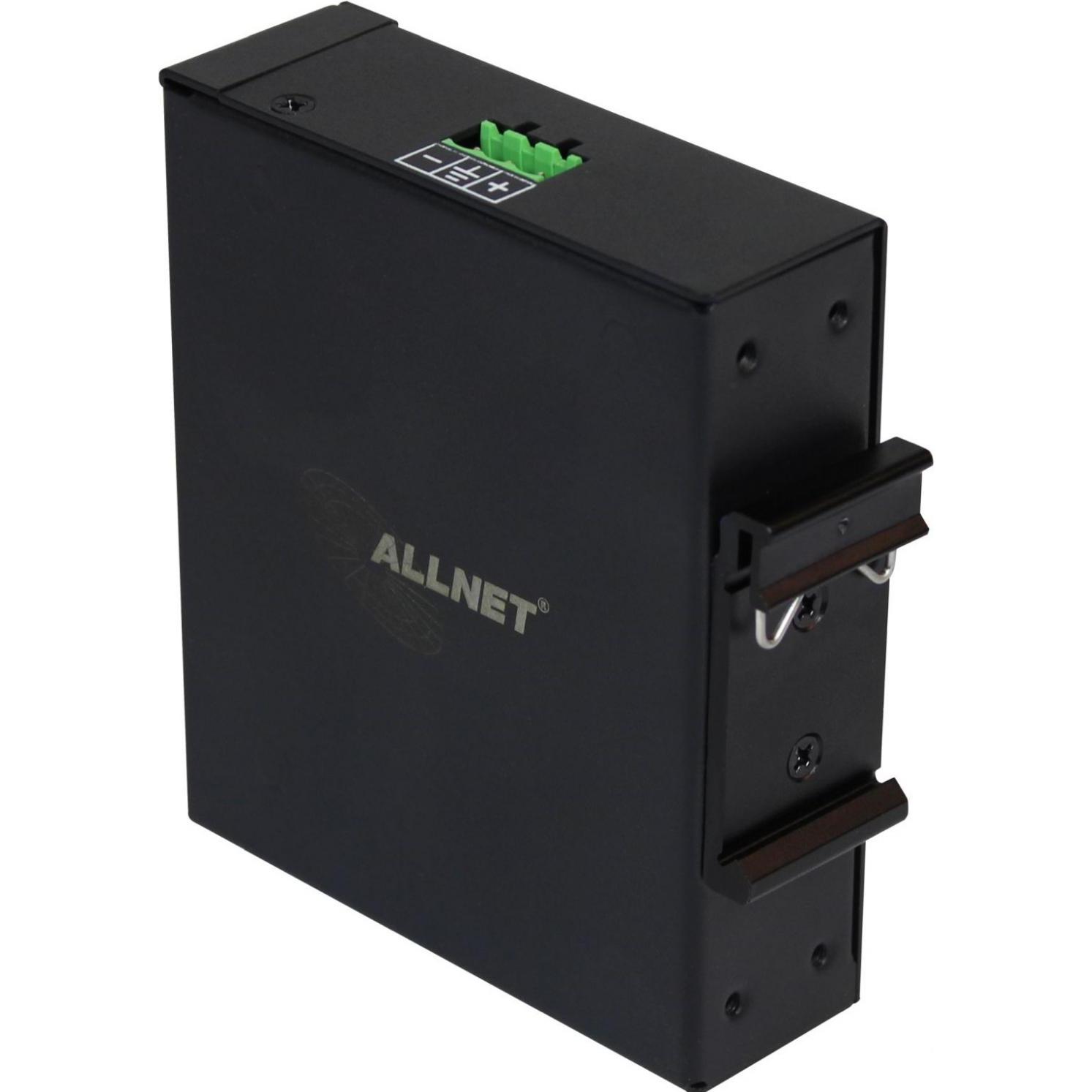

Allnet PoE Injektor Industrial Gigabit / PoE BT (15,4W/30W/90W) / DIN / Metallgehäuse / "ALL-PI2014 (PoE Injektor), Netz...

Highlights: 1 RJ45 Ethernet Dateneingang + 1 RJ45 Power over Ethernet Ausgang (Data + Power) 90W LTPoE++ Power Sourcing Equipment Unterstü,tzung DIN-Schienen- und Wandmontageträ,ger 48~57VDC Klemmleiste fü,r optionale Externe Netzteile (ACHTUNG: NETZTEIL WIRD NOCH BENÖ,TIGT) Unterstü,tzt 10/100/1000Base-TX IEEE802.3at PoE+ kompatibel Umfangreiche LED-Anzeigen fü,r die PoE-Diagnose -40°,C bis 75°,C BetriebstemperaturDer ALLNET ALL-PI2014-I-BT90 ist ein industrieller Single-Port 802.3bt PoE++ Injektor mit einer maximalen Ausgangsleistung von bis zu 90 Watt ü,ber Ethernet-Kabel. Er ist auß,erdem mit zwei 10/100/1000BASE-T RJ45 Kupferschnittstellen ausgestattet, um extrem groß,e Datenmengen zu ü,bertragen.Technical Details:Specification Model ALL-PI2014-I-BT90 , , Standards Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus , , Fixed Port Ethernet in:1x10/100/1000Base-TX RJ45 PoE out:1x10/100/1000Base-TX PoE++ PSE RJ45 Power in:1x48~57VDC,Max 2A (3 Pin Terminal Block) , , Network Medium 10BASE-T: Cat3,4,5 UTP(&le,100 meters) 100BASE-TX: Cat5 UTP or better(&le,100 meters) 1000BASE-TX: Cat5e,6 UTP or better(&le,100 meters) , PoE Description PoE Standard:IEEE802.3af/at/bt PSE PoE Pin Assignment:1/2/4/5+,3/6/7/8-(4-Pair) PoE Distance:Max 100m(Cat5e/Cat6) PoE Power Output:Max 90W(DC52-57V,1.73A) , , , , , LED Indicator PWR:Lights to indicate the injector has power input PoE:Lights to indicate the injector is providing PoE power 25%,50%,75%,100%(PoE Power Usage Indicator): 25%:off to indicate the PoE power usage is less than 25%,blinks to indicate the PoE power usage is around 0-24%,lights to indicate the PoE power usage is more than 25% 50%:blinks to indicate the PoE power usage is around 26-49%,lights to indicate the PoE power usage is more than 50% 75%:blinks to indicate the PoE power usage is around 51-74%,lights to indicate the PoE power usage is more than 75% 100%:blinks to indicate the PoE power usage is around 76-99%,lights to indicate the PoE power usage is at the maximum , , Mechanical Case: IP30 Slim type metal case Cooling way: Natural cooling,fanless design Dimension: 110x98x31mm(LxWxH) Weight: 0.35Kg Installation:DIN-Rail / Wall-mount , Protection 6KV 8/20u lighting protection 6KV ESD protection under-voltage,over-voltage,over-current and short circuit protection , Environmental Working Temperature: -40°,C to +80°,C Storage Temperature:-40°,C to +85°,C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) , , , , MTBF 100,000 hours Warranty 3 years.
